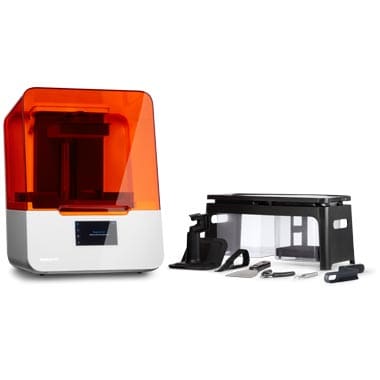

Formlabs Form 3B +Dental & Medical 3D Printer
For dental & medical applications with special & biocompatible materials
The Formlabs Form 3B+ is an affordable desktop SLA 3D printer designed for use with dental and biocompatible materials.
This 3D printer reliably delivers high-quality printed products. The Formlabs Form 3B+ ecosystem enables you to produce dental devices in-house: quickly and reliably – for even better clinical results in less time.
Thanks to its very high level of user-friendliness, the system is easy to implement – even in larger teams. And as you grow, it can be seamlessly expanded to meet your needs.
Request a quote Order online Request sample print3D-EDU GmbH is a certified Formlabs dealer.
The easy way to digital production of dental applications
Save time by producing your own parts. Independently produce parts you can be proud of, more affordably and hassle-free. The Formlabs Form 3+ offers unparalleled reliability, quality and ease of use. The workflows for many standard applications have been tested and validated by a team of dental experts.
1. dental 3D scan
Capture the patient’s anatomy digitally with an intraoral scanner. Send the scans with a prescription to the laboratory or a design station.
2. planning and design
Import scan data into your dental CAD software, where the procedure or correction is virtually planned and prepared.
3. dental 3D printing
Import the designed CAD files into the PreForm print preparation software. You can complete the print setup with just a few clicks and then simply send the data to a Formlabs printer.
Follow-up & preparation
After validated work steps, you wash, dry and cure the parts. Depending on the application, further preparation such as sterilization is carried out. The parts can then be used intraorally or for other applications.
Advanced dental and medical 3D printing
The innovative Low Force Stereolithography (LFS)™ technology uses a flexible resin tank to reduce peel forces. The specially adapted and further developed Light Processing Unit (LPU) could be replaced by the user in the event of a fault. All of this leads to more consistent, more precise print products with incredible surface quality and part sharpness at an XY resolution of 25 μm. In addition, the printer is safer and even in the event of a malfunction, downtime is minimal.
The Form 3B+ is designed for production
With the Formlabs Form 3B+, which has a print volume of 145 x 145 x 185 mm, you can produce around 2-3 times more parts per build plate than with a DLP 3D printer equipped with a small build plate. This means you need less time to operate the printer and can spend more time on more important tasks. Compared to a DLP printer, the Form 3B+ saves you around 55% in working time and costs. Formlabs’ modular ecosystem enables unmatched consistency, scalability and redundancy in dental 3D printing.
Difference between Form 3B and Form 3B+
Technical data
Technical specifications of the Form 3B+ 3D printer
| 3D printer | Form 3B+ |
|---|---|
| Technology | Low Force Stereolithography (LFS)™ |
| XY resolution | 25 μm |
| Laser dot size | 85 μm |
| Laser power | 1x 250 mW |
| Installation space | 145 × 145 × 185 mm |
| Layer thicknesses | 25 – 300 μm |
| Biocompatible materials | Yes |
| Resin filling system | Automatic |
| Resin cartridges | 1 |
| Support structures (Support) | Automatically generated Removal by light touch |
| Minimum space requirement | 405 × 530 × 780 mm |
| Printer size | 405 × 375 × 530 mm |
| Weight | 17.5 kg |
| Working temperature | Heats automatically to 35°C |
| Temperature control | Air-heated installation space |
| Power supply | 100-240 VAC 2.5 A 50/60 Hz 220 W |
| Connection options | Wi-Fi (2.4, 5 GHz) Ethernet (1000 Mbit) USB 2.0 |
| Control panel | 5.5″ interactive touchscreen 1280 × 720 resolution |
| Notifications | Touchscreen notifications SMS/email via dashboard Two LED status indicators Speaker for audio signals |
| Software | Compatibility: Windows 7 / Mac OS X from 10.10 Data type: STL or OBJ |
Tailored to the high demands of dental and medical applications
The Formlabs dental resins (resin) are matched to the Formlabs Form 3B+. All dental materials are fully validated and tested to ensure quality and accuracy. Thanks to the easy-to-change cartridges, you can switch production from one application to another within minutes. In addition, you benefit not only from the existing variety of materials, but also from the constant expansion of the material range.
Designed for collaboration
While you prepare and plan your print jobs in Preform, you can also manage your teams and Formlabs 3D printers via the online dashboard.
Automatic post-processing
To help you achieve consistently high-quality results with less time and effort, Formlabs has developed the Form Wash and Form Cure. These two machines perfectly complement the Formlabs Form 3B+ by automating and streamlining post-processing.
Formlabs Open Material License
Get open access to your SLA printer and print with third-party materials, giving you endless new possibilities on the industry's most reliable professional SLA ecosystem. Print with any other photopolymer resin (405 nm curing).
Compatible with all Form 3 series printers.
